Boya BY-AM1 Dual-Channel Audio Mixer (BY-AM1) Brand : Boya
Sku : 1089807
Will be delivered within 2 to 5 business days.
Including VAT fees. Pay
SAR21.50 for 36 months, for more info please and how to apply please
click here .
◼ Dual-channel audio mixer for dynamic/condenser XLR mics, line-level or instrument signals. ◼ Compatible with computers, laptops, speakers. ◼ No-latency headphone monitoring (Includes 6.35mm to 3.5mm TRRS adapter). ◼ 6.35mm/XLR combo inputs, 6.35mm audio outputs. ◼ USB 2.0 connection. ◼ Supply 48V phantom power via XLR input. ◼ 1/4"threaded hole for tripod mounting.

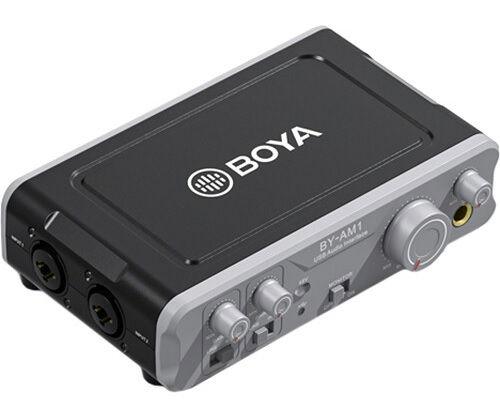

BY-AM1 Dual-Channel Audio Mixer The BY-AM1, a dual-channel audio mixer, provides you with a compact audio mixing solution for 6.35mm line-in devices or any XLR microphones (Such as BY-M1000/BY-BY-BM58), which allows you to easily mount and control input devices, and to transmit the output signal to your computer.
More Information EAN 6971008027624 Specifications
Microphone Inputs
Frequency Response:
20Hz- 20kHz±0.1dB
Maximum lnput Level:
9dBu (at minimum gain)
Line Inputs
Frequency Response
20Hz- 20kHz±0.1dB
THD
<0.01%
S/N
80dBU
Maximum lnput Level
15dBu (at minimum gain)
Gain Range
50dB
lmpedance
47kΩ
Instrument Inputs
Frequency Response:
20Hz - 20kHz±0.1dB
Maximum lnput Level:
8dBu (at minimum gain)
Headphone Outputs
S/N
75dB
THD
<0.01%
Maximum Output Level
6dBu
lmpedance
<10Ω
Sampling Rates
44.1kHz,48kHz,88.2kHz,96kHz,176.4kHz,192kHz
USB Connecction
USB 2.0 (USB-B connector)
Power Requirements
Powered by computers
Power Supply
48V PhantomPower
Line/Monitor Outputs
S/N
80dBU
THD
<0.01%
Maximum Output Level
10dBu
lmpedance
470Ω
Specification
Dimensions:
160*105*41.5mm (6.3*4.1*1.6')
Weight:
408.5g(14.4 Oz)
Packing List
- 6.6'(2m) USB-A to USB-B cable
- 6.35mm to 3.5mm TRRS audio adapter
